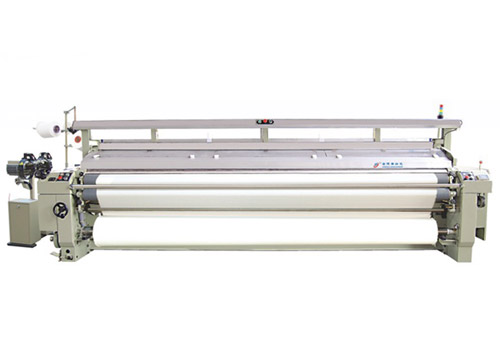

JDF-851L series Super-width Water Jet Loom

JDF-851L series high speed super-width heavy water jet loom is updated from heavy water jet loom on machine structure and motion parts optimal re-design, improved the beating up system,reduced the vibration and noise,meanwhile the body rigidity and stability is enhanced greatly,which is more suitable to weave super width fabric.

Main technical parameters

Heald frame: plain 2-8 pcs; cam 2-12 pcs; dobby 2-16 pcs
Number of nozzle: 1,2,3 or 4
Weft feeder: mechanical or electronic
Let off: MLO or ELO
Take up: MTU or ETU
Weft density: 5-60 picks/cm
Shedding type: plain,cam or dobby shedding
Running speed: 500-700rpm(working speed depends on weaving fabric specification)
Reed space: 340,350,360,380,420,450cm
