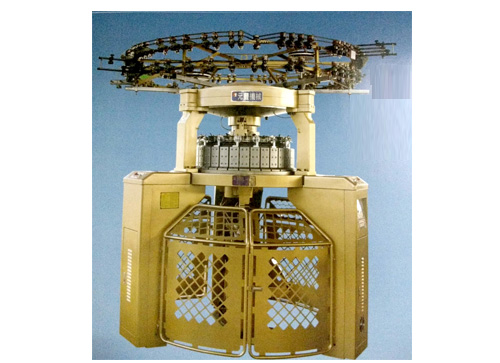

Main Features

1- Cams are changeable, the adjustment range is wide; knives and needles can work as aunit, or can work separately

2- The range of pile-height is wide, the maximum height of other machines in the market is 60mm, but this machine can be 30-120mm, due to its special design for the cams.

3- The motion of the needles depends on the cams, the style of the fabric can be better than the warp knitted fabric.

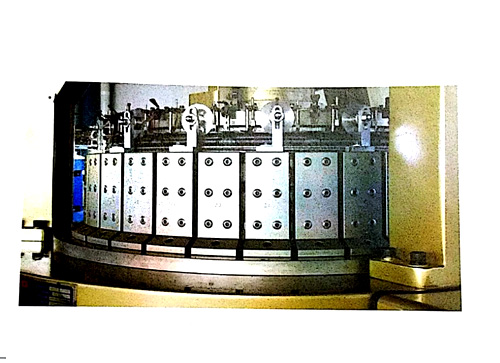

4- The needle drum can be adjusted in many positions, running precision is high, so the abrasion of the drum is much less; the action of the needle is smooth and steadily, the fault of the fabric can be reduced greatly.



Technical Data

  • (Cylinder Dia ) :30-38 inch
  • ( Needle Gauge ) :14G-26G
  • (Feeder): 16-48F
  • (R.P.M ) : 23r/min
  • (Power) 4kW , 5.5kW
  • ( Pile-Height ) : 2-25mm
