Product Description Introduction

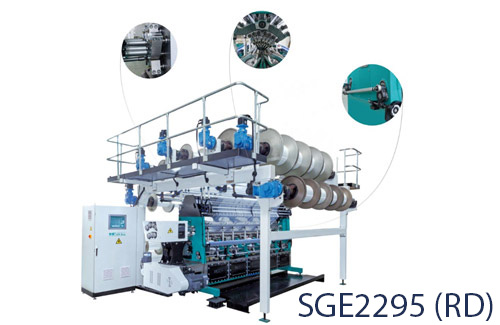

This machine can weave full and soft short pile fabrics, sandwich mesh fabrics which can be used for shoes, luggage, can cushion, sofa, garment, home textile stc.

Main Technical Parameter

Gauge : E18, E22, E24, E26, E28, E30
Working Width 110° , 138°
Needle Ty, : Latch Needle Block Individual Latch Needle

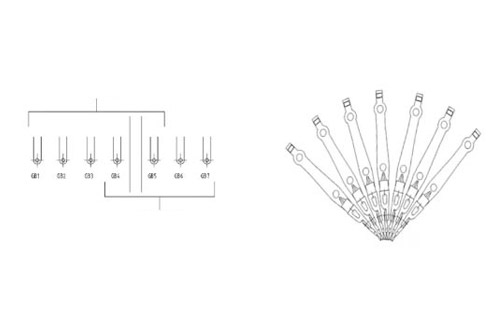

Bar Number : 5 , 6 , 7
Distance between Knocking-over Bar : lmm-12mm
Pattern Manner : Cam Disk, Electronic Shogging
Draw-. Manner : Electronic Draw-off
Take-up Manner : Independent take-up
Let-off Manner : EBC
Beams : 20°-30° (GB1,GB2,GB5,GB6), 21°-40° (GB3,GB4)
Main Power : 4-5kw-6 (110°) , 5.5-7kw-6 (138°)
