Application:

The machine is mainly used in shearing curls、hairiness or thread end on the surface of weaving、knitting、towel fabric、loop fabric and decorating fabric.

Main Technical Data:

Item    Data
Nominal width (mm)    1800/2200
Fabric speed (m/min)   5～40
       diameter (mm)    φ185,br> Shearing Cylinder
valid lentgh (mm)    1800/2200
number of shearing blades (pcs)    24
rotating speed (rpm)    100～1200
Motor power (Not including blower and air compressor)(kW)    11
Weight (kg)   3800/4200

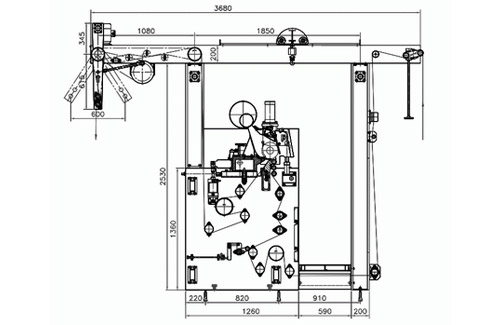

Overall dimensions
      L（mm）    3680
      W （mm）    3865/4265
      H （mm）    2975

Feature:

1. 1. The structure is simple and strong to make the machine more stable and reliable.
2. 2. The relative position of shearing cylinder and fabric table can be adjusted in length and breadth easily.
3. 3. Shearing cylinder, main guiding roller, fore guiding roller and fabric output roller are driven by respective motor and can be adjusted variably by inverter.
4. 4. A second spreading before shearing to avoid fabric creases.
5. 5. The traversing device of spiral blade can be chosen when shearing fabric or grinding blade.
6. 6. According to shearing processing, the fabric can be driven pulse by pulse and even inversely.
7. 7. Pneumatic lifting device and crane device to save labor and easy for maintenance.
8. 8. Adopted seam detector, electric alarm and protection switch, safe operation.
