Application:

This machine is suitable for surface polishing of natural and chemical fiber, knitted and gregarious fabrics. It is mainly used for processing of ordinal woolen, blanket, micro velboa and knitted non-pressed-pile. It also can be used to polish velvet, cotton fabrics, high pile knitted fabric and man-made fiber. Its working efficiency is nearly twice as the ordinary polishing machine.

1. 1. This high quality MB431 polishing machine is easy to operate and reliable with the following features compared to the congeneric machines:
2. Single polishing roller double table lathe has good effect. The polishing roller is possible to run forward and reverse, polish velvet velludo when anticlockwise and polish velvet plain clockwise. The working temperature is 75~250℃, controlled by professional temperature controller, the temperature accuracy is ±5℃, it appears on the numerical display device. Rectify the deviation of table lathe and belt automaticly by pneumatic device. This machine is the third generation product and in the leading position at home.

1. 2. Control the fabric feeding tension by adjusting the speed of fore guiding roller and rear guiding roller through exchange chain pulley.
2. 3. Fabric guiding motor and output motor adopt inverters, high speed and efficiency, fabric speed can be chosen from 9 to 30m/min and it displays on the numerical display device and can be adjusted directly.
3. 4. Another model with the fabric lower speed of 5-18m/min is suitable for blanket processing.

Main technical data

ITEM      DATA
Nominal width (mm)      2000、2500
Diameter of poilishing roller (mm)      370
Rotating speed (r/min)      300-900 (Variable)
Direction of rotation      Forward/Reverse
Polishing temperature (℃)      250
Fabric speed (m/min)      9-30
Heating power (Kw)      57.6 / 59.7
Motor power（kw） (Not include exhauster)      13.95

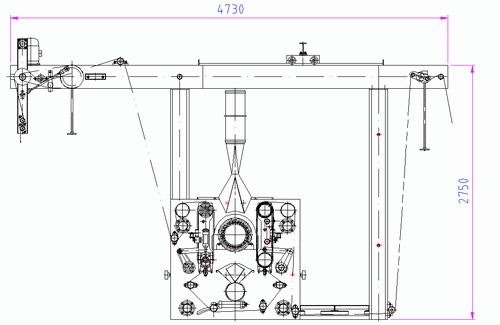

Overall dimensions      （mm）L      4330
          （mm）W      4530/4730
          （mm）H      2750
